Customized & Camlock Panels


PCC also manufactures custom made products to specific customer requirements.
The Salient Features of PCC Customized Cold store Panels are as follows:

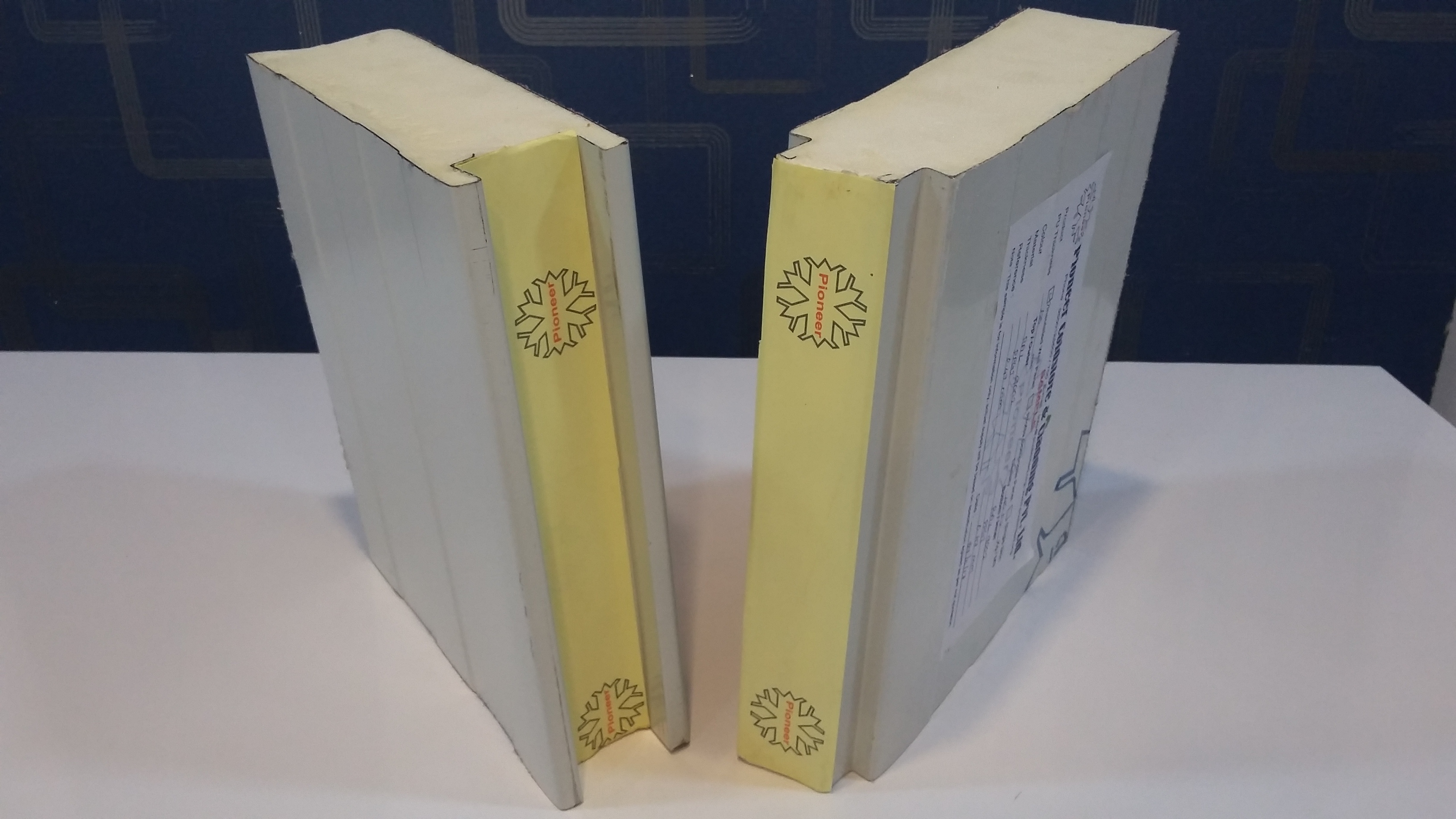

Tongue & Groove Joint

The joint of modular cold store panel are made with Tongue & Groove edges which are used in Cold rooms, Clean rooms, and Refrigerated vehicle bodies. The flexibility of these panels is ideal to solve numerous insulation problems that occurs in light weight pre-fabrication. The panel insulation does not deteriorate over time and does not absorb smells, neither toxic nor irritating and also do not support development of fungi or mildew.

Awesome Image

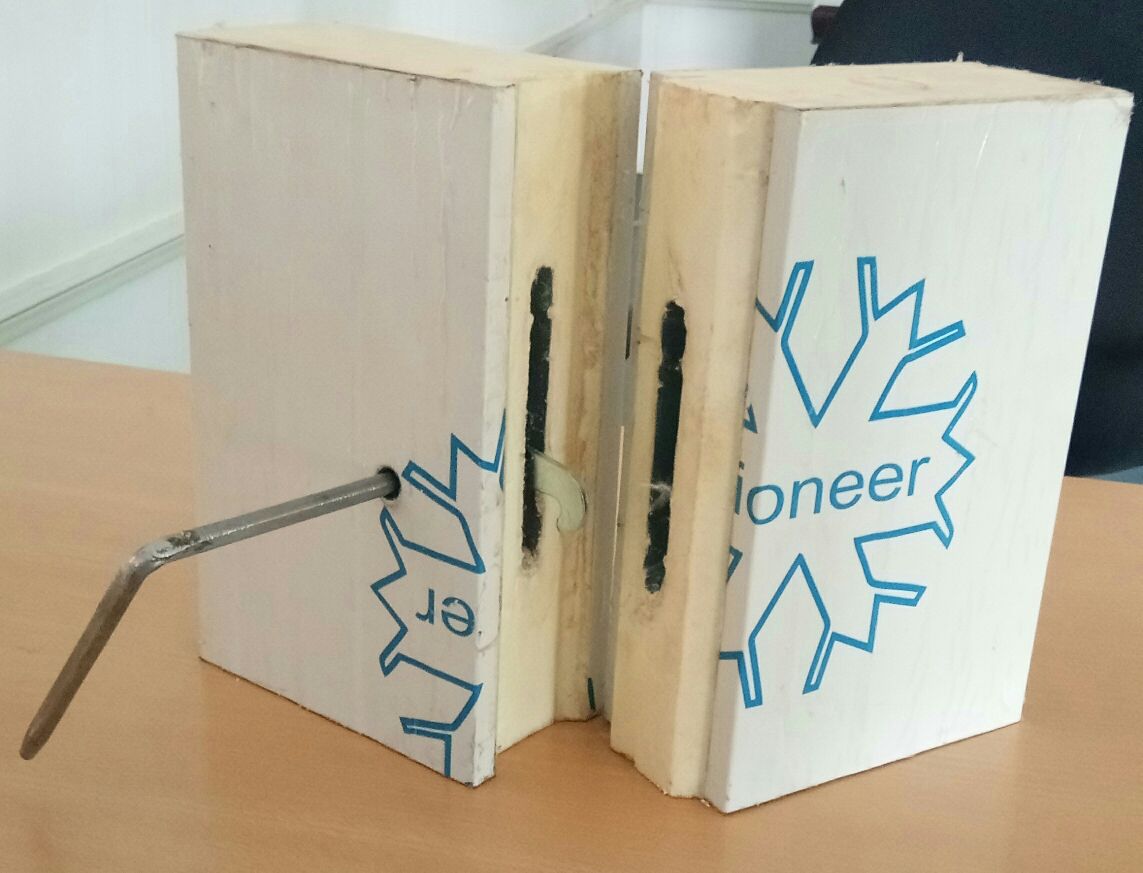

Camlock System

The locking system meet necessary dimensional requirement and gives the flexibility of easy assembly or disassembly. The quality and reliability of the products are guaranteed and ensure great stability and durability of the materials involved in both physical and dimensional terms. The Metal Camlock systems are ideal for Negative temperatures which ensures Zero Condensation.

Awesome Image

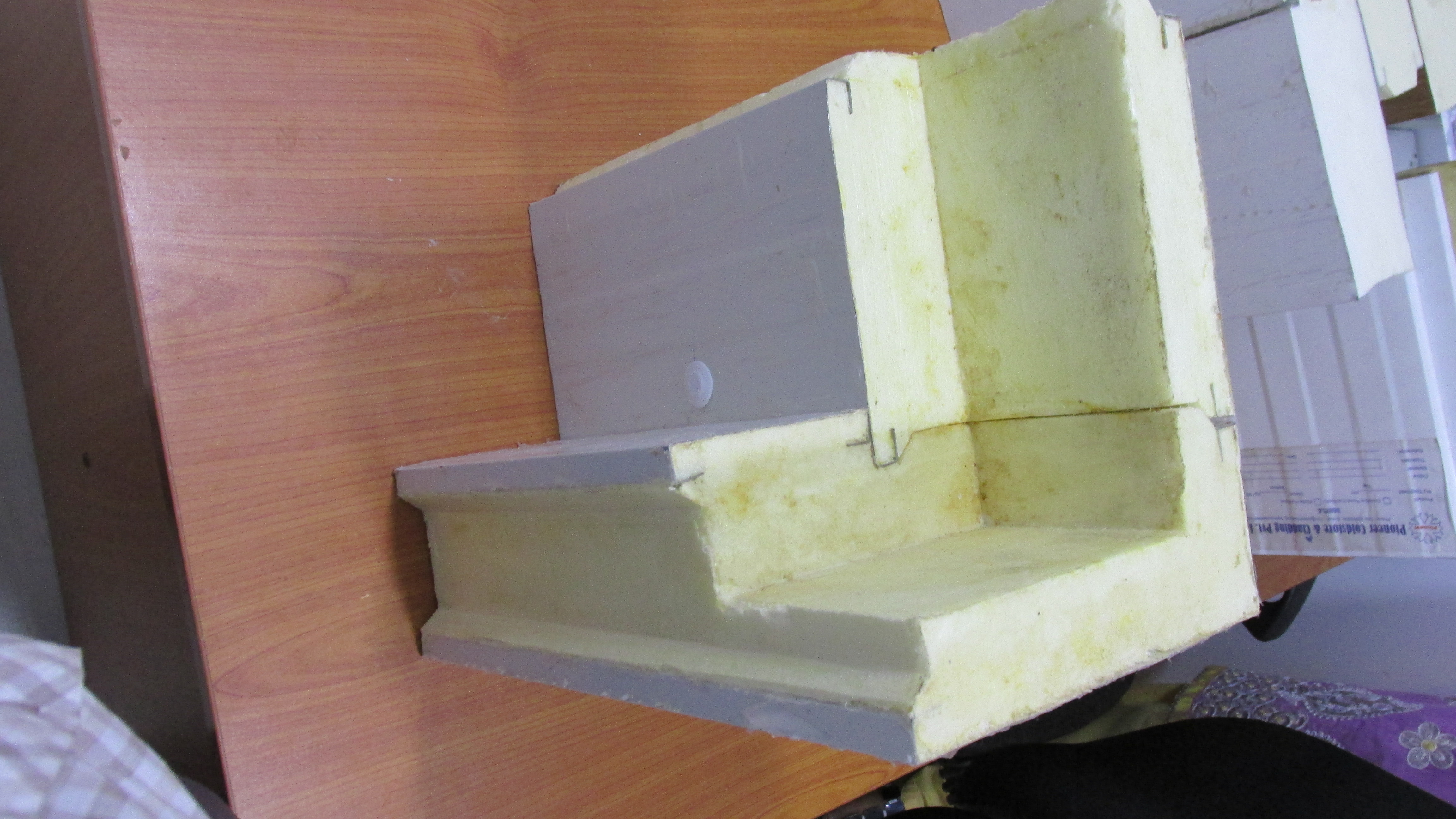

Corner Panels

We at PCC make custom made panels to ensure our products meeting the customer needs. Specifically for the corners of the cold store we make custom made corner panels which ensures better joint and no leakage of Air and No Condensation. These corner panels are aesthetically pleasant and fullfills the technical requirements.

Awesome Image

Ceiling Cut Back Panels

Like corner panels we make the specific ceiling and wall connection panels which helps the Ceiling panels to sit perfect on the Wall Panels and also ensures zero air leakage and ensures the quality of the cold store.

Awesome Image

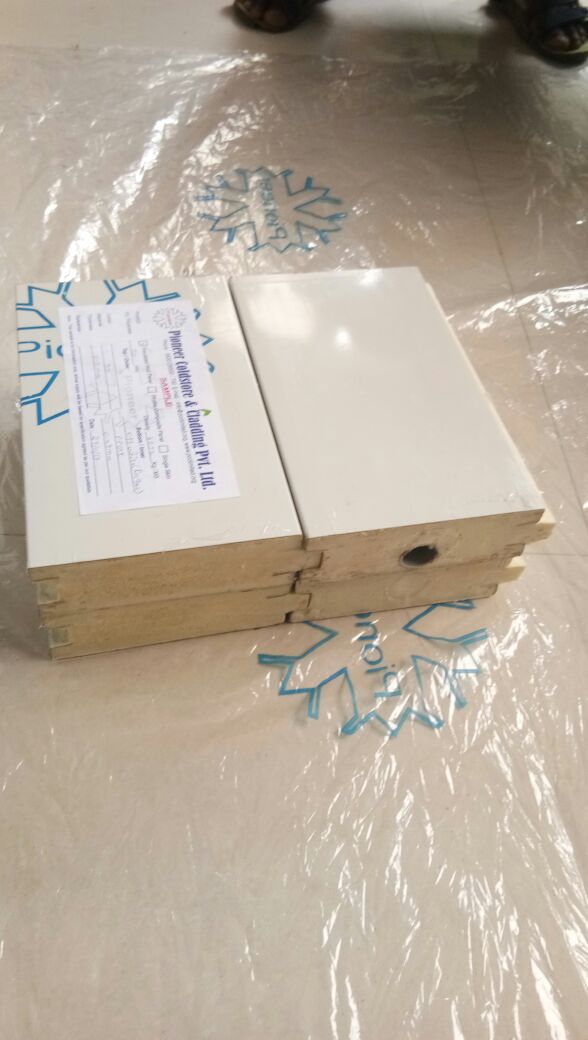

Narrow Panels

The Narrow panels are generally used to avoid cutting the panels in the site. We manufacture the panels for the suitable width and hence the site cutting and fabrication is not required at all. This ensures aesthetic and clean panel fixing.

This Panel Customization involves high quality panel production skills with advanced design skills. We at Pioneer ensure pre-designed and energy efficient coldstore construction.

Awesome Image

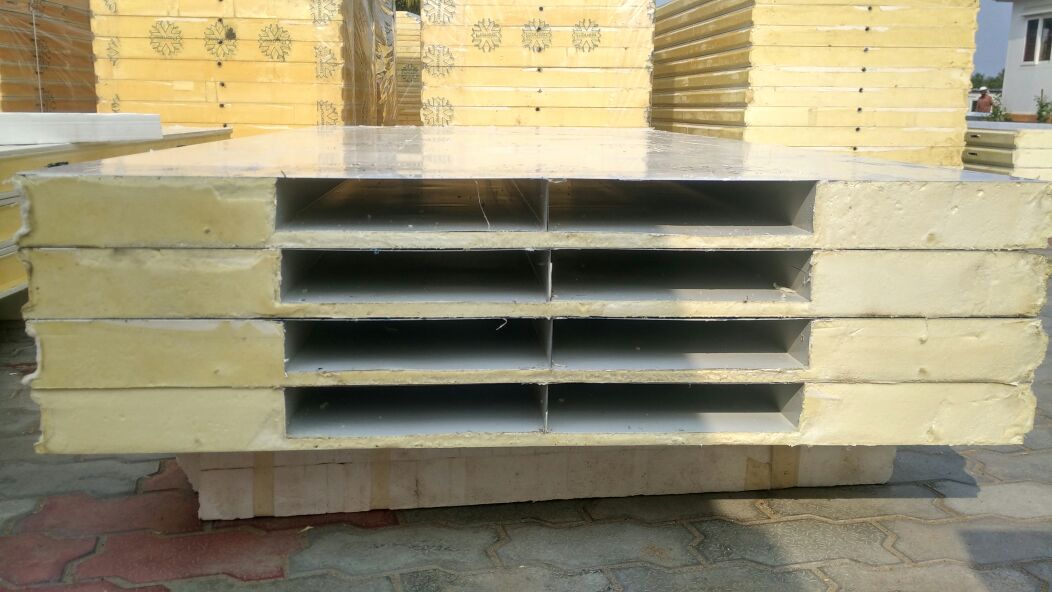

Riser Panels

The Polyurethane (PU) Foam Raiser Pre-insulated air duct panel is widely used for the air distribution of central air duct system, which is one of the most innovative and energy-saving air duct systems. Polyurethane Duct Panels is widely used in the ventilation systems of central air conditioning units in hospital, hotel, supermarket, guest house, airport, stadium, workshop, food store and so on.

Awesome Image

Conduit Panels

Polyurethane conduit pipes are placed inside the panel for electrical purpose

Awesome Image

Insulation Foam Properties

Test Measured Value Unit
Density Core 38 - 42 Kg/m3
Compressive Strength 100 ~ 210 Kpa
Tensite Strength 150 ~ 250 Kpa
Shear Strength 100 ~ 240 Kpa
Thermal Conductivity ('K' Value) 0.019 (±0.002) W/m°C
Closed Cells >90 %
Water Absorption by Volume (After 24 hours) 1 %
Fire Resistance Unit B3 as per DIN 4102 (B2 & PIR upon request)


As per the company’s green initiative, PCC ensures that all foaming agents are environment friendly and CFC free. PCC uses polyurethane as foaming agent which does not deteriorate over time and does not absorb smells. The panels are neither toxic nor irritating and they do not support the development of fungi or mildew. These products are classified as B3 & B2 according to European Fire Retardant Standard.


Insulated Panels are available in 50, 60, 80, 100, 120, 150 & 200 mm thick and density will be 40-42 Kg/m3. The maximum length of the panels will be 12 m and can be produced according to the project demands. All kind of Cold room door’s like Sliding, Hinged, Swing etc. are available and will be manufactured as per the standard on request.
