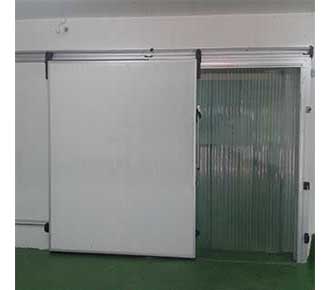

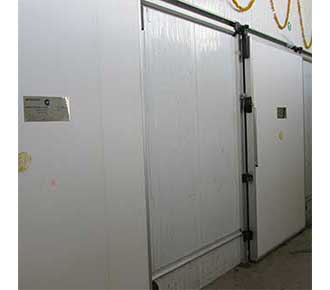

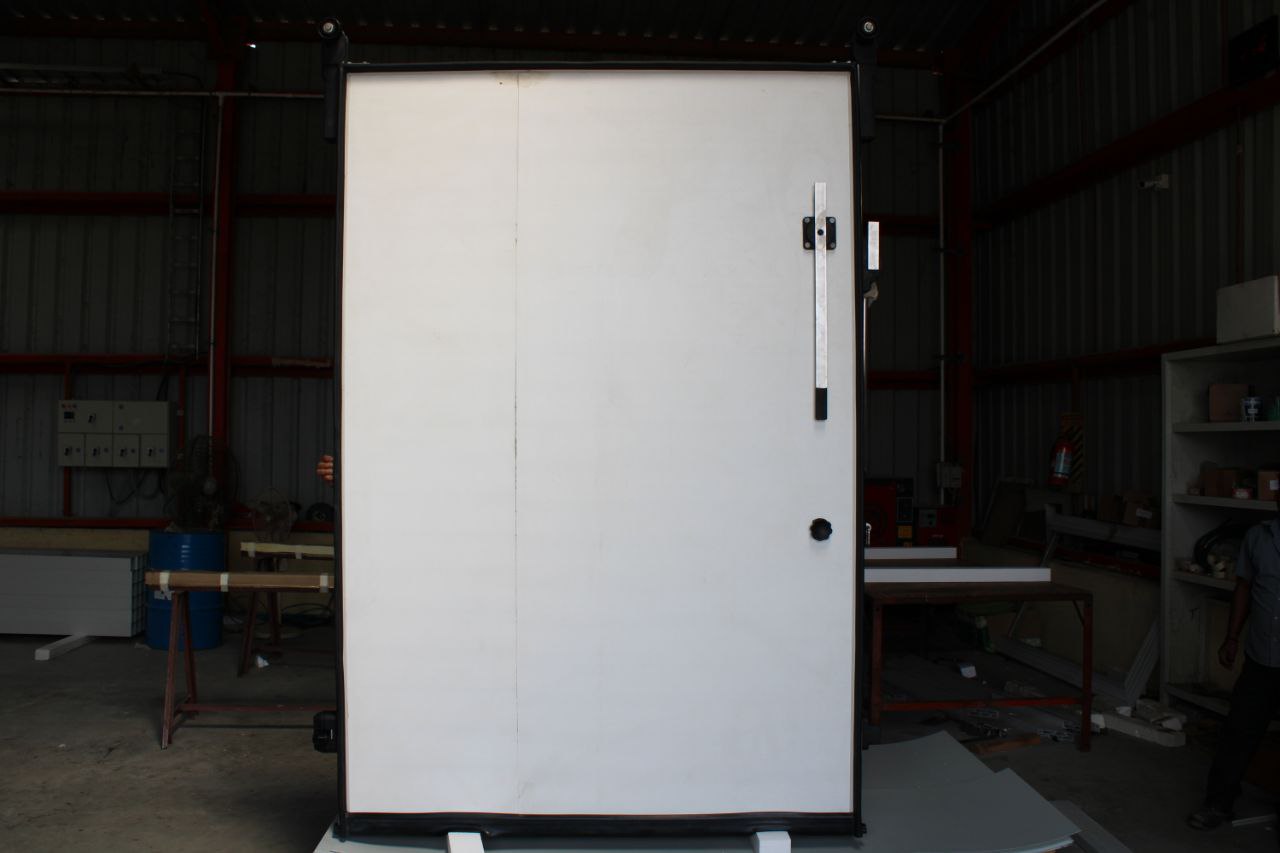

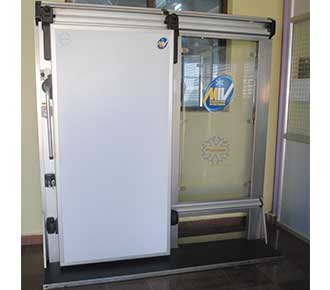

Sliding Doors

Single Leaf Hinged Door


S.No Door Code Direction of Opening Overall Door-Size(widthxheight)
1 SLSD – 3001 LHS / RHS 1200 x 2400
2 SLSD – 3002 LHS / RHS 2000 x 2400
3 SLSD – 3003 LHS / RHS 2400 x 3000


Description


Leaf Inner & Outer Material Pre painted GI sheets and plastisol (PVC) sheets (other finish available on request)
Inner & Outer Skin Thickness 0.50mm to 0.7mm Thick (TCT)
Inner & Outer Skin Colour White (Similar to RAL 9003)
Insulation Material Injected Poly Urethane Foam (PUF)
Density 2 ± 40 Kg/Cum
Available Thickness 120 mm, 90 mm &70 mm*
Edges of Leaf (Material) Aluminium Profiles
Replaceable Gasket Perimeter Single Gasket in EPDM high 30 mm placed into the Leaf (Special PVC Gasket Retainer to avoid any contact from Metal Sheet to Edges – Safety for Thermal Bridge)
Frame (In One PC’s) In Grey Colour PVC Profiles (Aluminium as option)
Counter Frame In Aluminium (PVC profiles as option)
Upper Rail In Aluminium Profile
Lower Rail In Aluminium Profile and adjustable Guide
External Lever Handle In Stainless Steel A304
Internal Telescopic Lever Handle In Stainless Steel A304
Pulley Supports In Composite Materials
Optional Features Vision Glass, PVC Curtains

Lock with Key and Internal Safety Release System (Option)

*Optional in Motorized Opening

Notes*
  • Frame Heater & Pressure Relive Valve (or) Pressure Port will be given for Freezer Doors Only (ie.120mm only)
  • Other Sizes and Colors available upon request.
