Raiser Panels & Panels with Conduit pipes

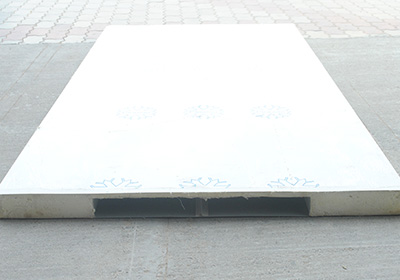

Raiser panels: The Polyurethane (PU) Foam Raiser Pre-insulated air duct panel is widely used for the air distribution of central air duct system, which is one of the most innovative and energy-saving air duct systems. Polyurethane Duct Panels is widely used in the ventilation systems of central air conditioning units in hospital, hotel, supermarket, guest house, airport, stadium, workshop, food store and so on.

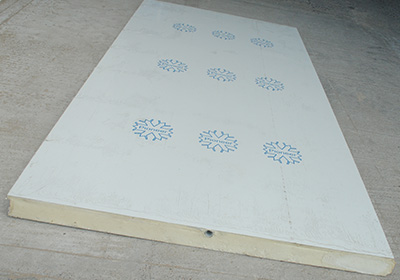

Panels with conduit pipes: Polyurethane conduit pipes are placed inside the panel for electrical purpose.

General Features

• Mechanical Characteristic of the foam at Overall Density of 40(+/-2) kg/ m3

Tensile Strength :	150 ~ 250 kpa
Compression Strength :	100 ~ 210 kpa
Shear Strength :	100 ~ 240 kpa
Fire property :	B3 as per DIN 4102 (B2 & PIR upon request)

• Insulation Capacity

K value (Thermal conductivity of PU) :	-0.019 W/mK
Tolerance :	+/- 0.002

Polyrethane Core Thickness (mm)		T = 30	T = 35	T = 40	T = 50	T = 60	T = 80	T = 100
Overall Heat Transfer Coefficient 'U' Value	W/M2 °C	0.630	0.540	0.475	0.380	0.316	0.237	0.190

• Water absorption of the foam

After 24 hours :	1.0% of Volume
Closed Cells :	93%
Advisable Length :	3 meters – 14 meters
Standard width :	1000 mm
